Antec Dark Phantom DP502 FLUX White, F-LUX Platform, 5 x 120mm Fans Included, Tempered Glass Side Panel, Swing Open Front Panel & LED Strips Mid Tower ATX Gaming Case
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Antec Dark Phantom DP502 FLUX White, F-LUX Platform, 5 x 120mm Fans Included, Tempered Glass Side Panel, Swing Open Front Panel & LED Strips Mid Tower ATX Gaming Case

Available: In Stock
325 SR
  • Order within
Antec DP502 FLUX Computer Case
Antec DP502 FLUX Computer Case

The DP502 FLUX White mid-tower gaming case is well equipped with an industry-leading design of advanced ventilation, taking the Antec Dark league gaming cases to the next generation.

Net Weight: 7.55 Kgs
Gross Weight: 8.7 Kgs

Antec DP502 FLUX Computer Case

WHY THE NEW COOLING SOLUTION?

When Intel and AMD announced their latest CPUs, they all deliver remarkable performance upgrades and better productivity, it also means the functional requirement of PC equipment needs to be taken to the next level, especially the thermal performance.

Antec DP502 FLUX Computer Case

To cope with the stress of enhanced heat dissipation, Antec developed a revolutionary structure for airflow, providing an improved and powerful cooling solution for your system.
The F-LUX Platform.

F-LUX PLATFORM — ANTEC'S ORIGINAL COOLING SOLUTION

What is the F-LUX Platform?

The definition of FLUX is Flow Luxury.
The F-LUX Platform is a new industry-leading and highly efficient design by Antec featuring an advanced case structure for excellent airflow and 5 x 120 mm fans included.
A core element of the design ethos was to enhance GPU cooling performance.

Antec DP502 FLUX Computer Case

F-LUX Platform will provide massive airflow when the GPU is functioning, enhancing the heat dissipation, and gaming performance.

Antec DP502 FLUX Computer Case

F-LUX PLATFORM — ANTEC'S ORIGINAL COOLING SOLUTION

5 x 120 mm Fans Included.

Plenty of heat is drawn out from the interior, which helps the CPU to cool down.

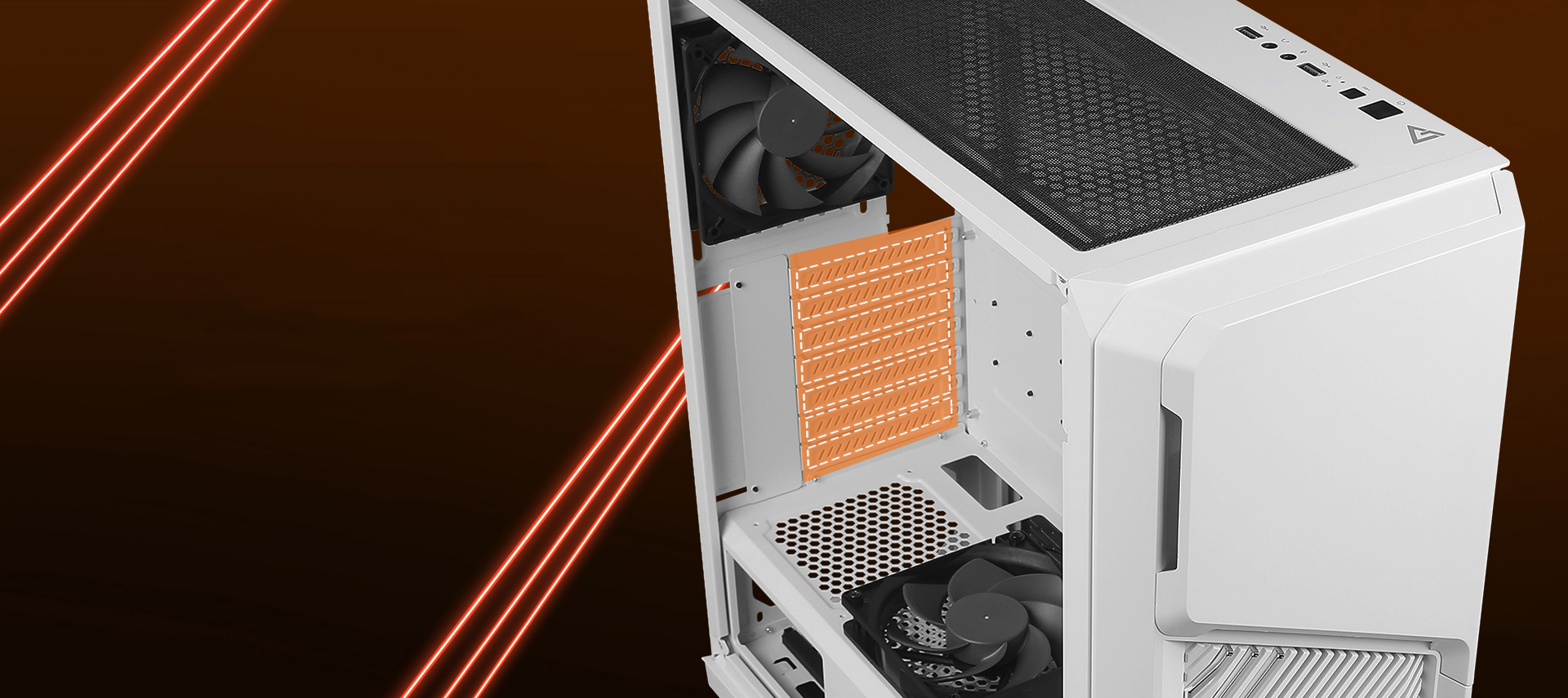

The 120 mm reverse fan is on the top of the PSU chamber, which pulls cool air into the case via the ventilation at the right-side panel and the bottom, providing heightened GPU cooling performance.

Swing-open small front panel with hairline surface treatment and the mass ventilation design provides massive cooling.

Antec DP502 FLUX Computer Case

The electroplating-processed LED on the top left-hand side presents a Sci-Fi Vibe.

Antec DP502 FLUX Computer Case

COLOR YOUR SYSTEM BY BUILT-IN LED CONTROLLER

You only need the LED mode button to control all the addressable LEDs.
Or you can sync it with the motherboard to enjoy more custom light effects.

Antec DP502 FLUX Computer Case

KEEP IT CLEAN

All the hubs have a dust plug, preventing them from damage.

Antec DP502 FLUX Computer Case

4 MM TEMPERED
GLASS SIDE PANEL

Tool-free thumbscrew design at the rear of the tempered glass side panel, which gives you quick access to the interior, and enhances the solidity.

Antec DP502 FLUX Computer Case

READY FOR EXCELLENT GAMING PERFORMANCE

Antec DP502 FLUX Computer Case

SUFFICIENT SPACE FOR CABLE MANAGEMENT

Antec DP502 FLUX Computer Case

ULTIMATE THERMAL
PERFORMANCE

Supports up to 9 fans.
(Without the ODD)

Antec DP502 FLUX Computer Case

MAKE IT COOLER

DP502 FLUX White keeps your gear cool with room for up to 360 mm radiator in the front & top.


EASY TO CLEAN

Antec DP502 FLUX Computer Case

Front
Magnetic large dust filter.

Antec DP502 FLUX Computer Case

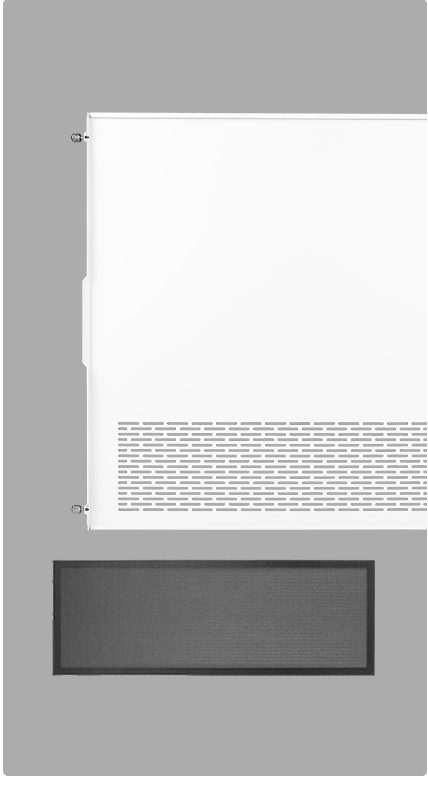

Bottom
Removable large dust filter.

Antec DP502 FLUX Computer Case

Top
Magnetic large dust filter.

Antec DP502 FLUX Computer Case

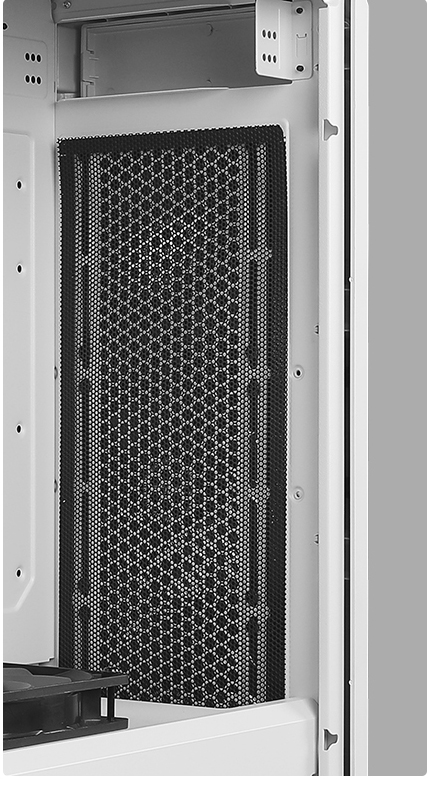

Side
Magnetic large dust filter.

Antec DP502 FLUX Computer Case

MAKE A GREEN BUILD

7 x reusable PCI-E slots

CASE SPECIFICATIONS

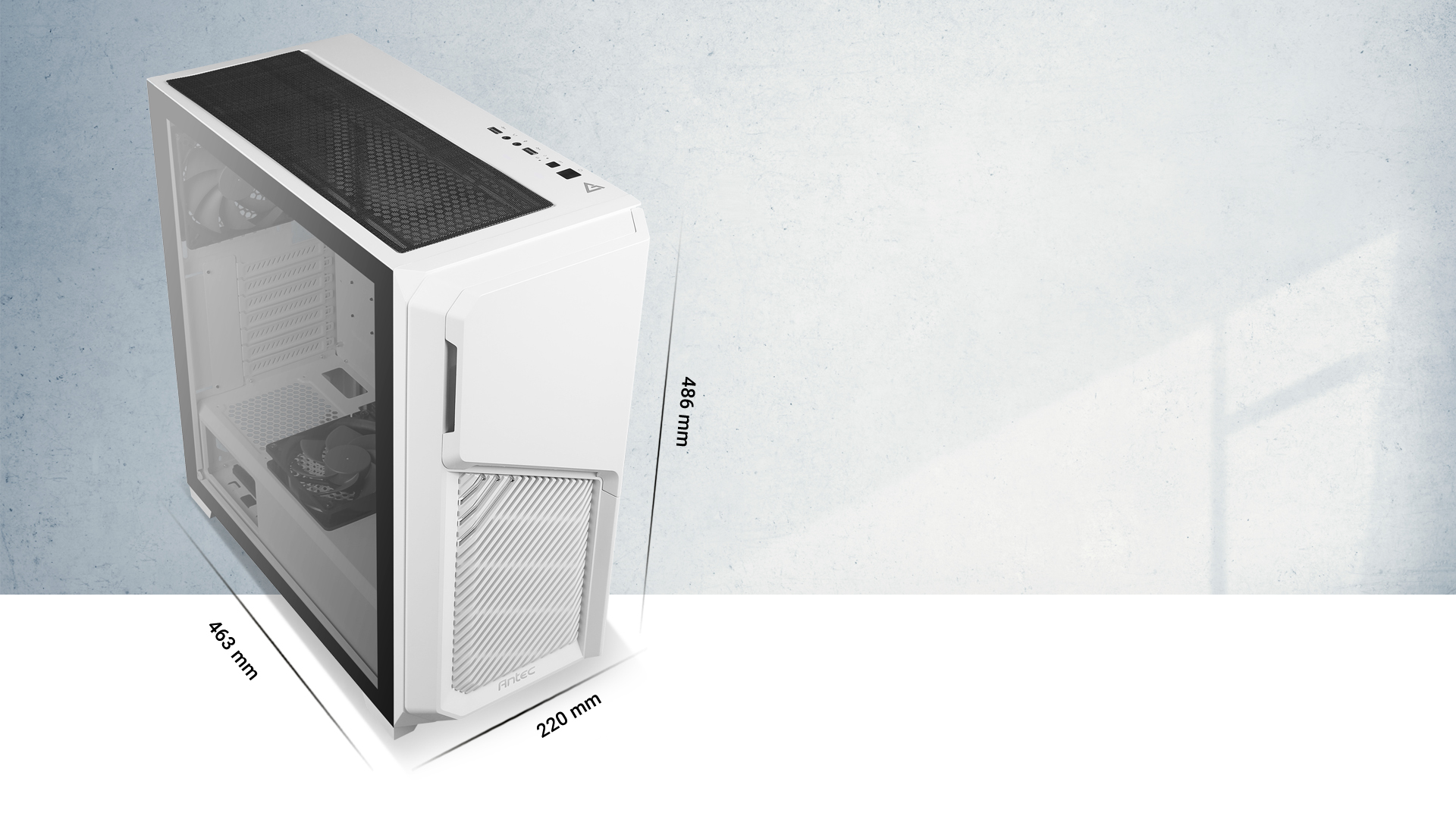

Case Dimensions 463 x 220 x 486 mm (DxWxH)
Form Factor Mid Tower
Materials Steel + Plastic
Motherboard Support ATX, M-ATX, ITX

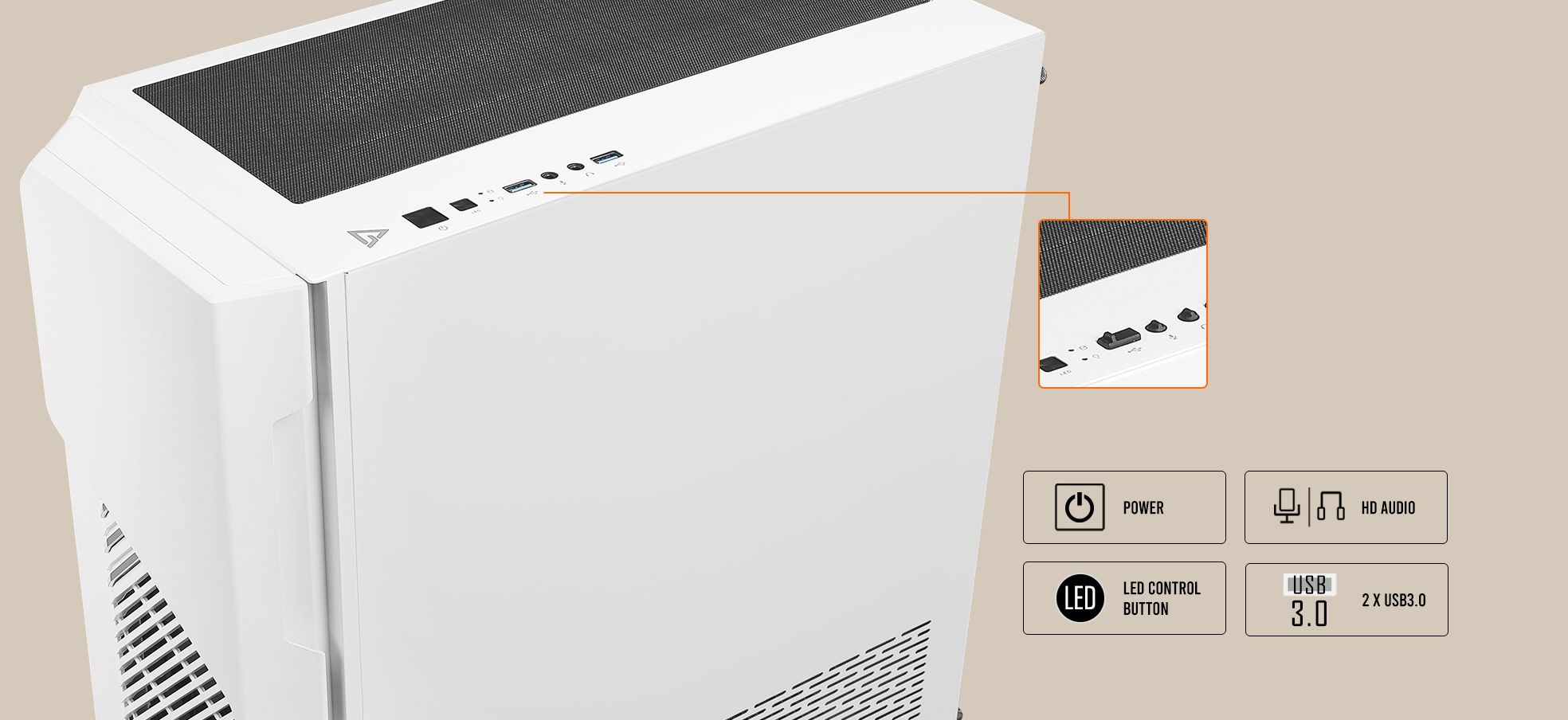

I/O Ports Power, LED Control Button, 2 x USB 3.0, HD-AUDIO
Side Panel 4 mm Tempered Glass Side Panel
EXPANSION & DRIVE BAYS
Expansion Slots 7
5.25" 1
3.5" / 2.5" (Convertible) 3 / 2
2.5" 3
FAN SUPPORT
Front 3 x 120 mm / 2 x 140 mm
Top 3 x 120 mm / 2 x 140 mm (w/o ODD and w/o ODD bracket)
2 x 120 mm / 2 x 140 mm (w/o ODD but with ODD bracket)
2 x 120 mm / 1 x 140 mm (When ODD is installed)
Power Supply Shroud 2 x 120 mm
Rear 1 x 120 mm
Included Fan(s) 3 x 120 mm fans in front
1 x 120 mm fan (Reverse Fan) on PSU shroud
& 1 x 120 mm fan in rear
RADIATOR SUPPORT
Front 120 / 240 / 280 / 360 mm
(≤ 55 mm thickness when fans are installed outside of front panel)
(≤ 30 mm thickness when fans are installed inside of front panel) [Max Radiator Length ≤ 405 mm]
Top 240 / 280 / 360 mm (w/o ODD and w/o ODD bracket)
240 / 280 mm (w/o ODD but with ODD bracket)
120 mm (When ODD is installed)
[Max Radiator Length ≤ 405 mm]
Rear 120 mm
CLEARANCES
Max GPU Length ≤ 405 mm
Max CPU Cooler Height ≤ 175 mm
Max PSU Length ≤ 205 mm
MISCELLANEOUS
Dust Filters Front / Top / Bottom / Right Hand Side
Net Weight 7.55 Kgs
Gross Weight 8.7 Kgs
UPC# 0-761345-80051-8
